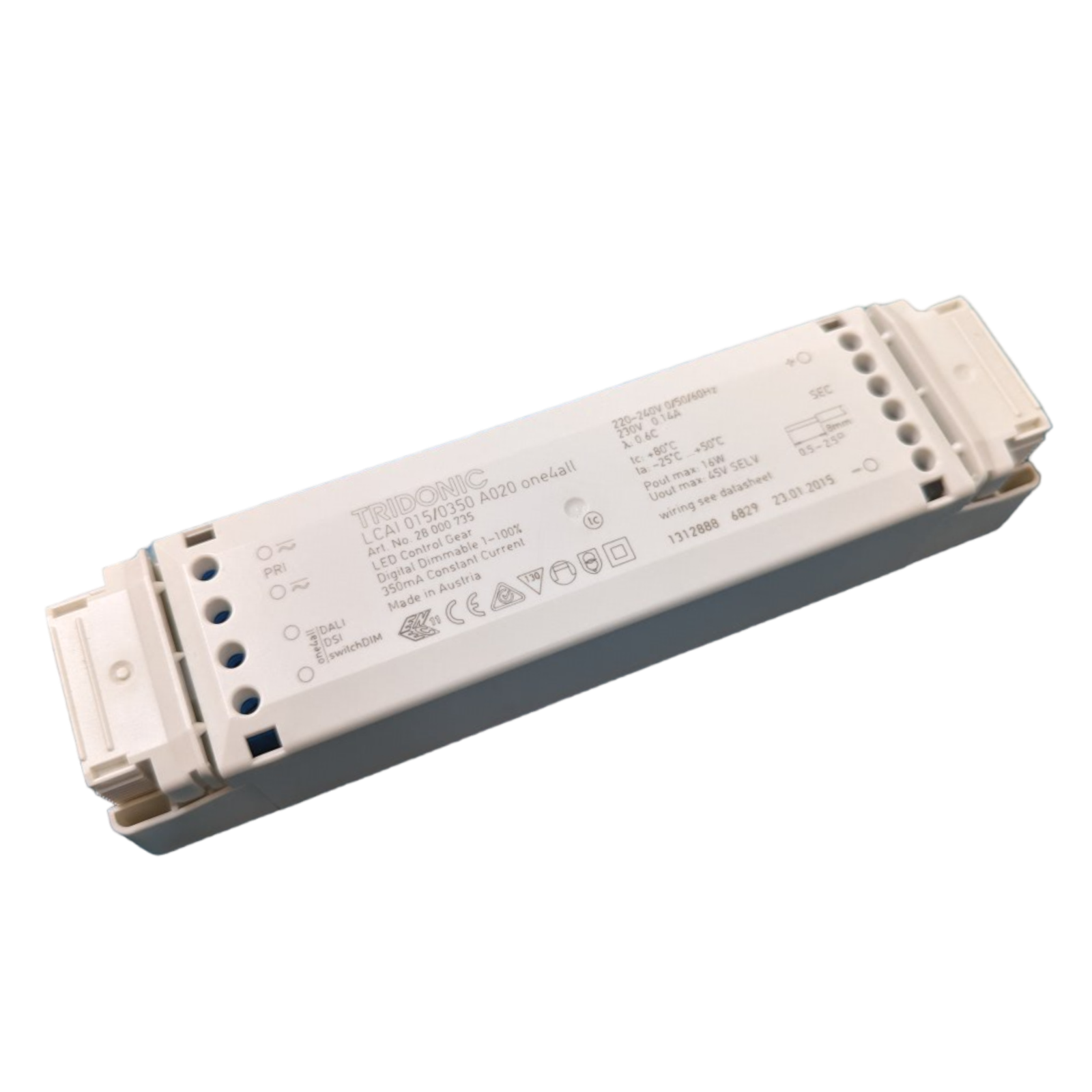

Tridonic LCAI 15W 350mA DALI Dimmable LED Driver

Description

Tridonic LCAI 15W 350mA one4all digital dimmable LED control gear. DALI compatible, dimmable 1–100%, ideal for intelligent LED building control and luminaire applications.

Tridonic LCAI 15 W 350 mA one4all

Art. No. 28 000 735

LED Control Gear Digital Dimmable 1-100% 350mA Constant Current

Product description
• 1 addressable output channel
• 350 mA PWM output signal
• Short-circuit protection with automatic restart
• No-load detection with automatic restart
• Intelligent Temperature Guard (protection against thermal
damage)
• Connecting cable, cable cross-section 0.5 – 2.5 mm²
• Power input on stand-by < 1 W
• Output power 15 W
• Overload protection with automatic restart
• Strain relief

Properties
• switchDIM-MEMORY and corridorFUNCTION
• Dimming range 1 to 100 %
• Dimming curve adapted to the sensitivity of the eye
• Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
• Powerless switching via a digital interface (no need for switching via mains)
• Fault reporting and programmable operating parameters in DALI mode
• SELV
