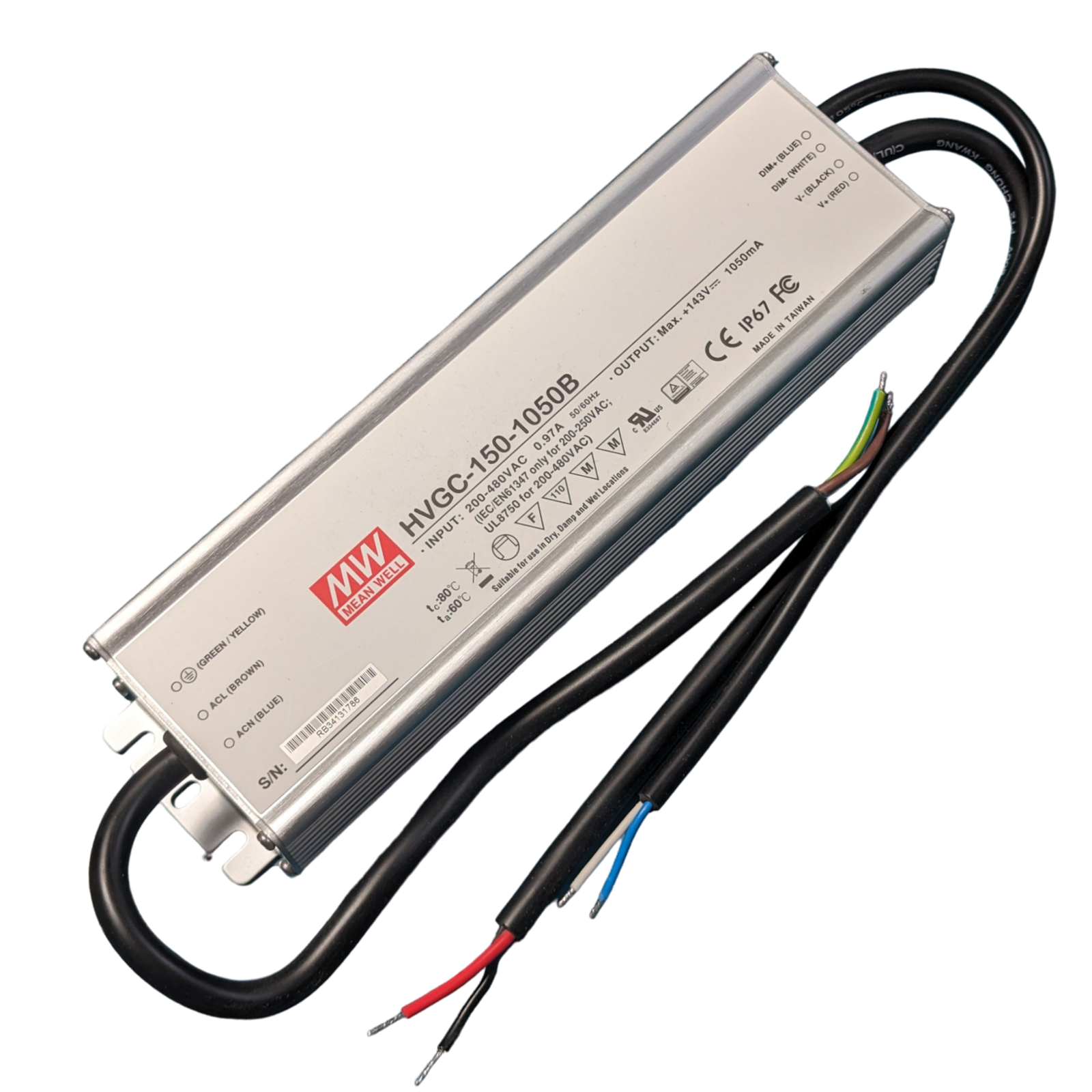

Mean Well HVGC-150-1050B 150W 1050mA Dimmable LED Driver

Description

150W high-voltage constant current LED driver from Mean Well. 0-10V dimmable with built-in PFC, suitable for high-bay LED luminaires and commercial installations.

0-10V Dimmable Constant Current LED Driver 150W

• Model: HVGC-150-1050B
• Manufacture: Mean Well

Features:

• Constant current design
• Wide input range 180~528VAC
• Three in one dimming function (0~10Vdc or 10V PWM signal or resistance)
• Protections: Short circuit/ Over current/ Over voltage/ Over temperature
• Built-in active PFC function
• High efficiency up to 90.5%
• Cooling by free air convection
• IP67 design for indoor or outdoor installations
• Suitable for LED lighting and street lighting applications
• Compliance to worldwide safety regulations for lighting
• Suitable for dry/ damp/ wet locations

Specifications:

• Wattage: 150W
• Input: 180~528VAC, 254VDC~747VDC
• Output Current: 1050mA
• Output Voltage Options: Single
• Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved
  EMC
• Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
