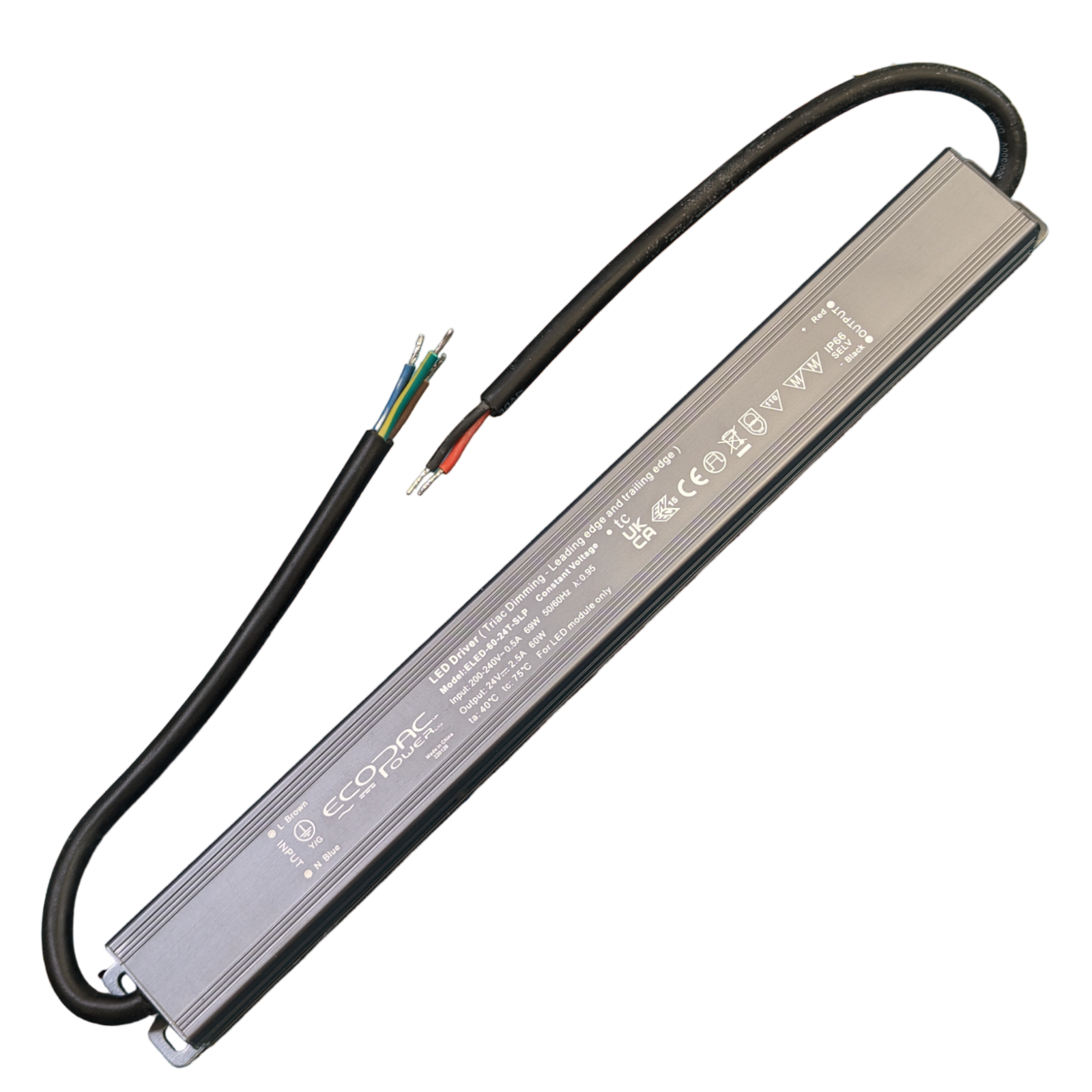

Ecopac ELED-60-24T-SLP 60W Slimline TRIAC LED Driver 24V
£58.00
Ultra-slim 60W TRIAC dimmable constant voltage LED driver from Ecopac. Slimline profile ideal for tight ceiling and panel installations requiring 24V LED control.
Description
Ultra-slim 60W TRIAC dimmable constant voltage LED driver from Ecopac. Slimline profile ideal for tight ceiling and panel installations requiring 24V LED control.
TRIAC Dimmable Constant Voltage LED Driver 60W
- Model: ELED-60P-24T-SLP
- Manufacture: Ecopac Power
Features:
- Slimline Constant Voltage Driver, Flicker free
- Built in active PFC Function
Other features:
- AC input: 200-240VAC
- Efficiency up to 85%
- Dimming range: 0-100%, Load: 10-100%
- PWM Output
- Protections: short circuit/ over loading/over temperature
- Cooling by free air convection
- IP66 design
Specifications:
- Wattage: 60W
- Input Voltage: 200-240VAC
- AC Current (Max.): 0.37A
- Output Current: 2.5A
- Output Voltage: 24V
- Output Voltage Options: Single
- Dimensions: 300 x 32 x 20 300 x 32 x 20
Additional information
| Model | ELED-60P-24T-SLP |
|---|---|
| Manufacturer | Ecopac |
| AC input | 200-240VAC |
| Dimming range | 0-100%, Load: 10-100% |
| Protections | short circuit/ over loading/over temperature |
| Wattage | 60W |
| Input Voltage | 200-240VAC |
| AC Current (Max.) | 0.37A |
