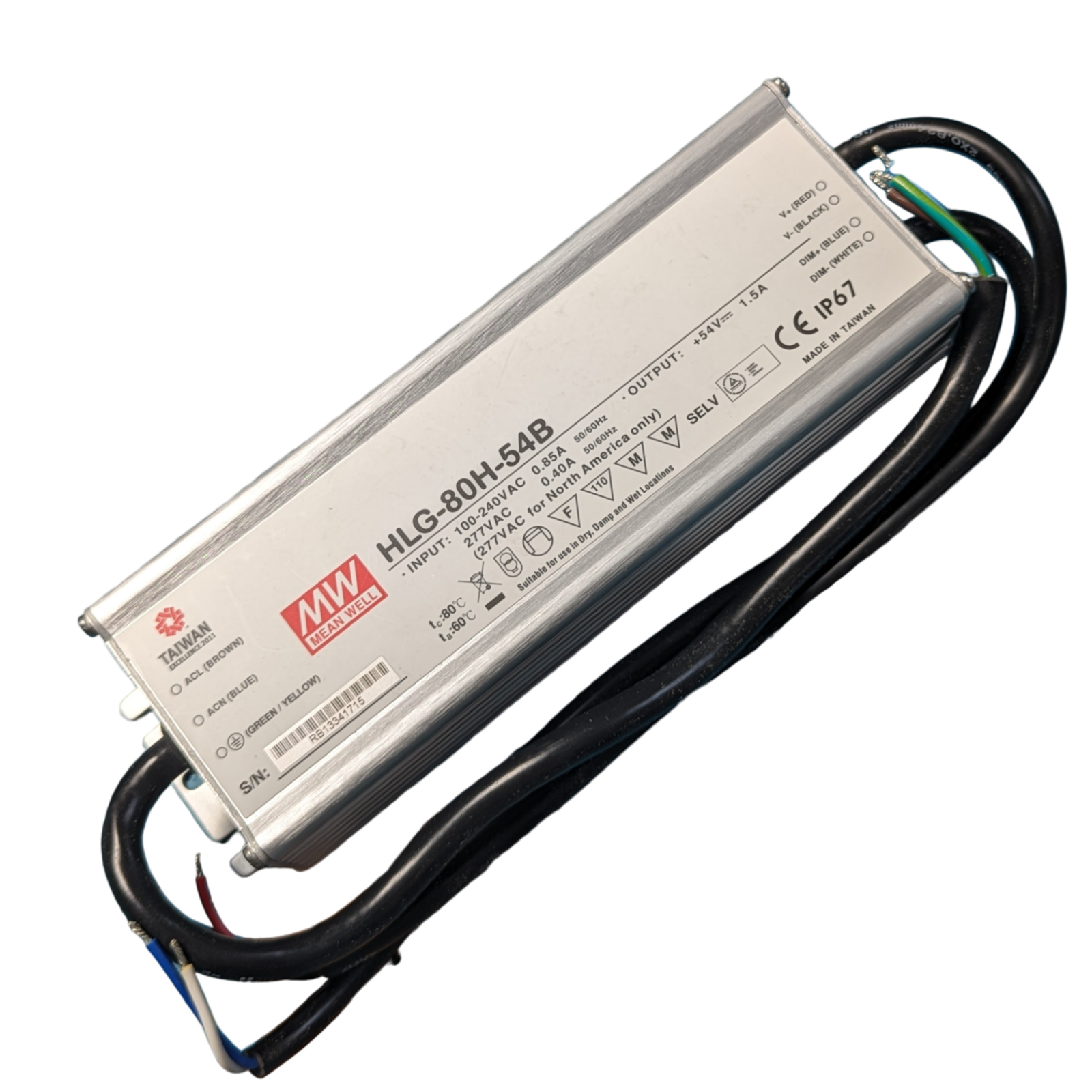

Mean Well HLG-80H-54B 80W 54V IP67 Dimmable LED Driver

Description

80W 0-10V dimmable constant voltage LED driver from Mean Well with built-in 3-in-1 dimming function. IP67-rated for indoor and outdoor LED strip and luminaire use.

0-10V Dimmable Constant Voltage LED Driver 60–80W
Model: HLG-80H-54B
Manufacture: Mean Well

Features:

• Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
• Built-in active PFC, PF>0.9 for 60% of load or higher
• Protections: Short circuit / Over current / Over voltage / Over temperatur
• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 94%
• Output current adjustable through output cable or internal potentiometer
• Cooling by free air convection
• Suitable for dry, damp and wet location
• Suitable for LED lighting and street lighting applications
• Meet 4KV surge immunity level (IEC61000-4-5)
• Class 2 power unit
• IP67 design for indoor or outdoor installations

Specifications:

• Wattage: 80W
• Input: 90~305VAC, 127~431VDC
• Ouput: 54V
• Output Voltage Options: Single
• DC output adjustment: +/-10% rated output voltage
• Safety Standards: UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1
• EMC Standards: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
