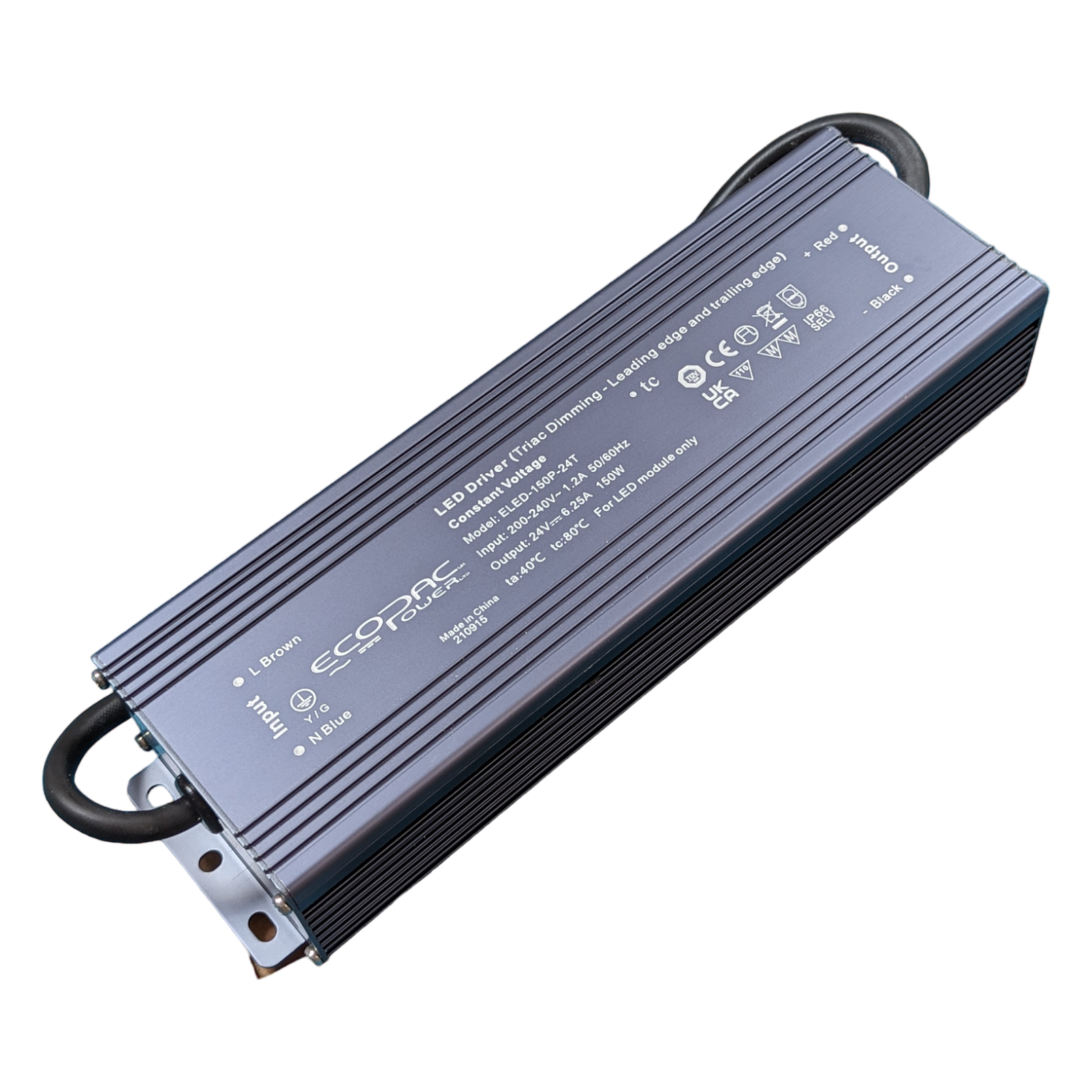

Ecopac ELED-150P-24T 150W 24V TRIAC Dimmable LED Driver
£72.00
150W TRIAC dimmable constant voltage LED driver at 24V from Ecopac Power. Compatible with leading and trailing edge dimmers for smooth LED lighting control.
Description
150W TRIAC dimmable constant voltage LED driver at 24V from Ecopac Power. Compatible with leading and trailing edge dimmers for smooth LED lighting control.
150 Watt PREMIUM Triac Dimmable Driver
Model: ELED-150P-24T
Manufacture: Ecopac Power
Features:
- Constant voltage/ PWM Output
- Leading & Trailing edge dimmable
- AC input: 200-240VAC
- Built-in active PFC function
- Efficiency up to 87%
- Protections: Short circuit/ Over loading/ Over current/ Over temperature
- Full protection aluminium housing
- Cooling by free air convection
- Suitable for LED lighting and moving signs
Specifications:
- Output Voltage 24V
- Output Current 6.25A
- Rated Power 150W
- Input Voltage 200-240VAC
- Frequency Range 47-63Hz
- AC Current (Max.) 1.2A
- IP Rating: IP66
Additional information
| Manufacturer | Ecopac |
|---|---|
| AC input | 200-240VAC |
| Protections | Short circuit/ Over loading/ Over current/ Over temperature |
| IP Rating | IP66 |
