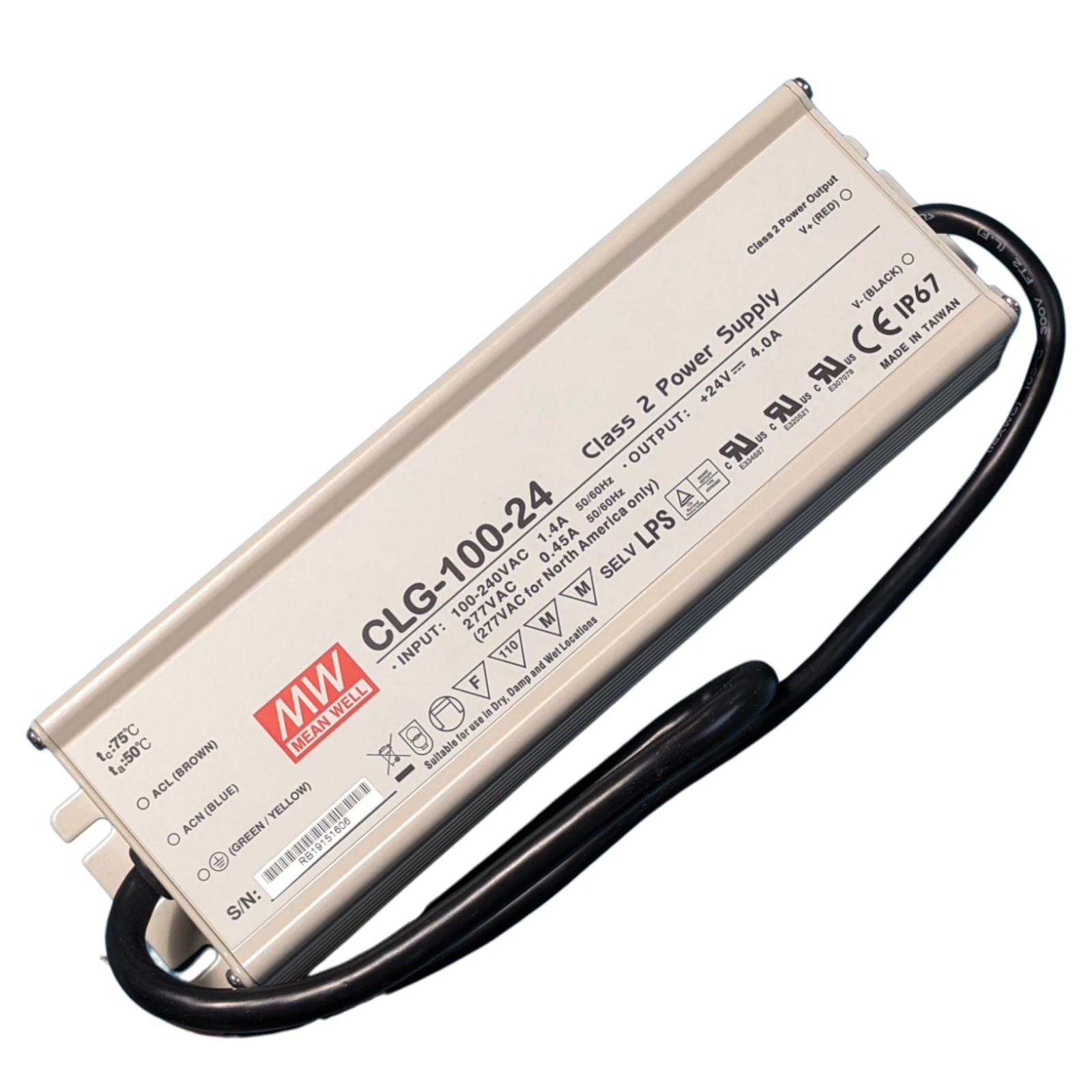

Mean Well CLG-100-24 100W 24V Constant Voltage LED Driver
£45.50
100W constant voltage LED driver from Mean Well at 24V output. Universal AC input with built-in PFC and full protection functions for LED strip and signage use.
Description
100W constant voltage LED driver from Mean Well at 24V output. Universal AC input with built-in PFC and full protection functions for LED strip and signage use.
100W Single Output Switching Power Supply
Model: CLG-100-24
Manufacture: Mean Well
Features:
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in active PFC function
- IP67 design for indoor or outdoor installations
- UL1310 Class 2 power unit
- Cooling by free air convection
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications
Specifications:
- Wattage: 100W
- Input: 90~295Vac, 127 ~ 370VDC
- Ouput: 24V
- Output Voltage Options: Single
- Safety Standards: UL1310 Class 2, TUV EN60950-1, CAN/CSA C22.2 No. 223-M91(except fo EN61347-1, EN61347-2-13, r 48V), IP67 approved
- EMC Standards: EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level, criteria A
Additional information
| Manufacturer | Mean Well |
|---|---|
| Protections | Short circuit / Overload / Over voltage / Over temperature |
| Wattage | 100W |
| Input | 90~295Vac, 127 ~ 370VDC |
| Ouput | 24V |
| Output Voltage Options | Single |
| Safety Standards | UL1310 Class 2, TUV EN60950-1, CAN/CSA C22.2 No. 223-M91(except fo EN61347-1, EN61347-2-13, r 48V), IP67 approved |
| EMC Standards | EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN61547, EN55024, light industry level, criteria A |
