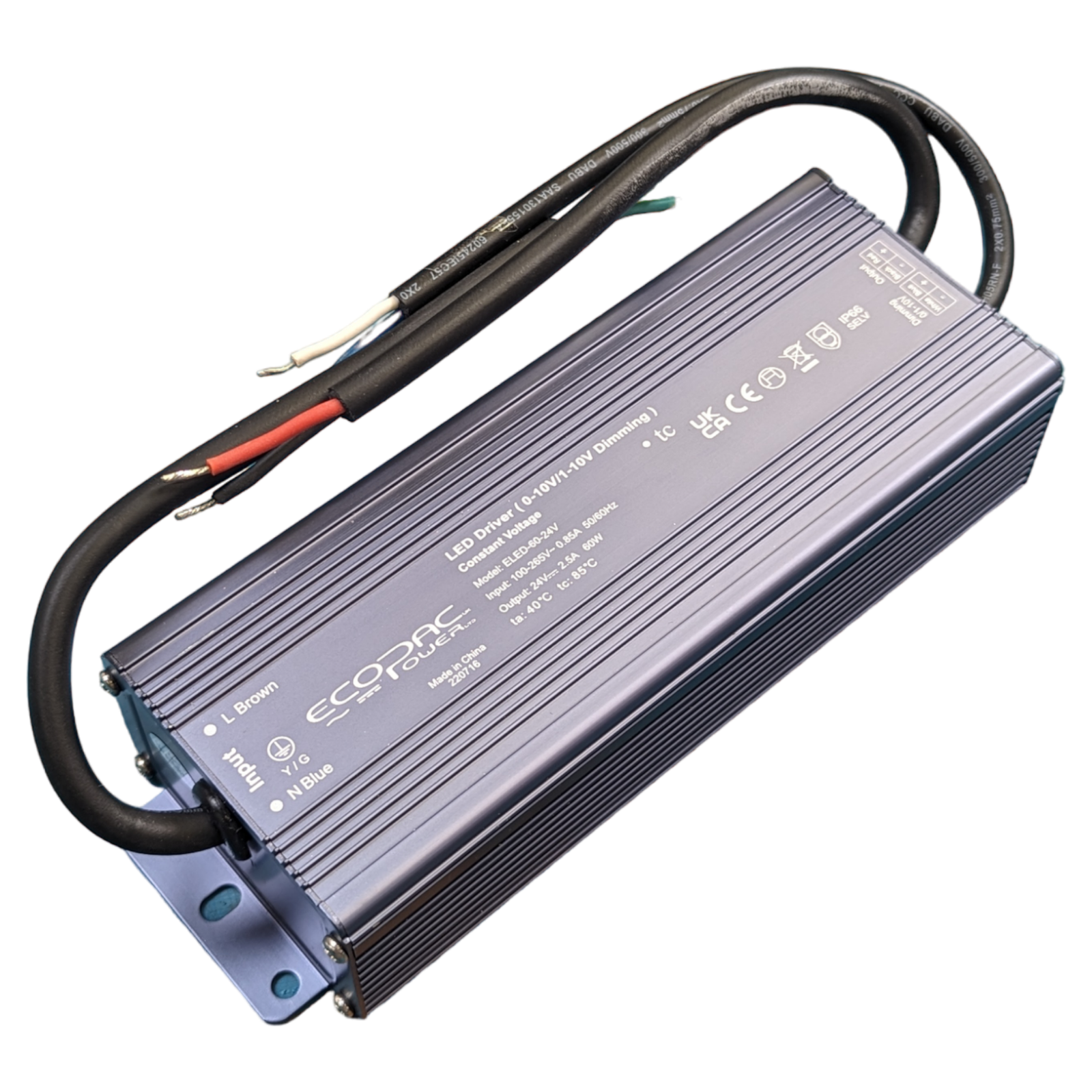

Ecopac ELED-60-24V 60W 24V 0-10V Dimmable LED Driver
£51.00
60W 0/1-10V dimmable constant voltage LED driver from Ecopac. 3-in-1 dimming function supports 0-10V, potentiometer, and switch dimming at 24V output.
Description
60W 0/1-10V dimmable constant voltage LED driver from Ecopac. 3-in-1 dimming function supports 0-10V, potentiometer, and switch dimming at 24V output.
60W 0/1-10V Dimmable LED Driver
- Model: ELED-60-24V
- Manufacture: Ecopac Power
Features:
- Constant voltage
- 3 in 1 dimming function (0/1-10Vdc or 10v PWM signal or resistance)
- AC input: 100-265VAC
- Built-in active PFC function
- High efficiency up to 86%
- Protections: Short circuit/ Over current/ Over loading
- IP66 design for indoor and outdoor installation
- Suitable for LED lighting and moving signs
Specifications:
- Output Voltage 24V
- Output Current 2.5A
- Rated Power 60W
- Input Voltage 100-265VAC
- Frequency Range 47-63Hz
- AC Current (Max.) 0.64A
Additional information
| Model | ELED-60-24V |
|---|---|
| Manufacturer | Ecopac |
| AC input | 100-265VAC |
| Protections | Short circuit/ Over current/ Over loading |
