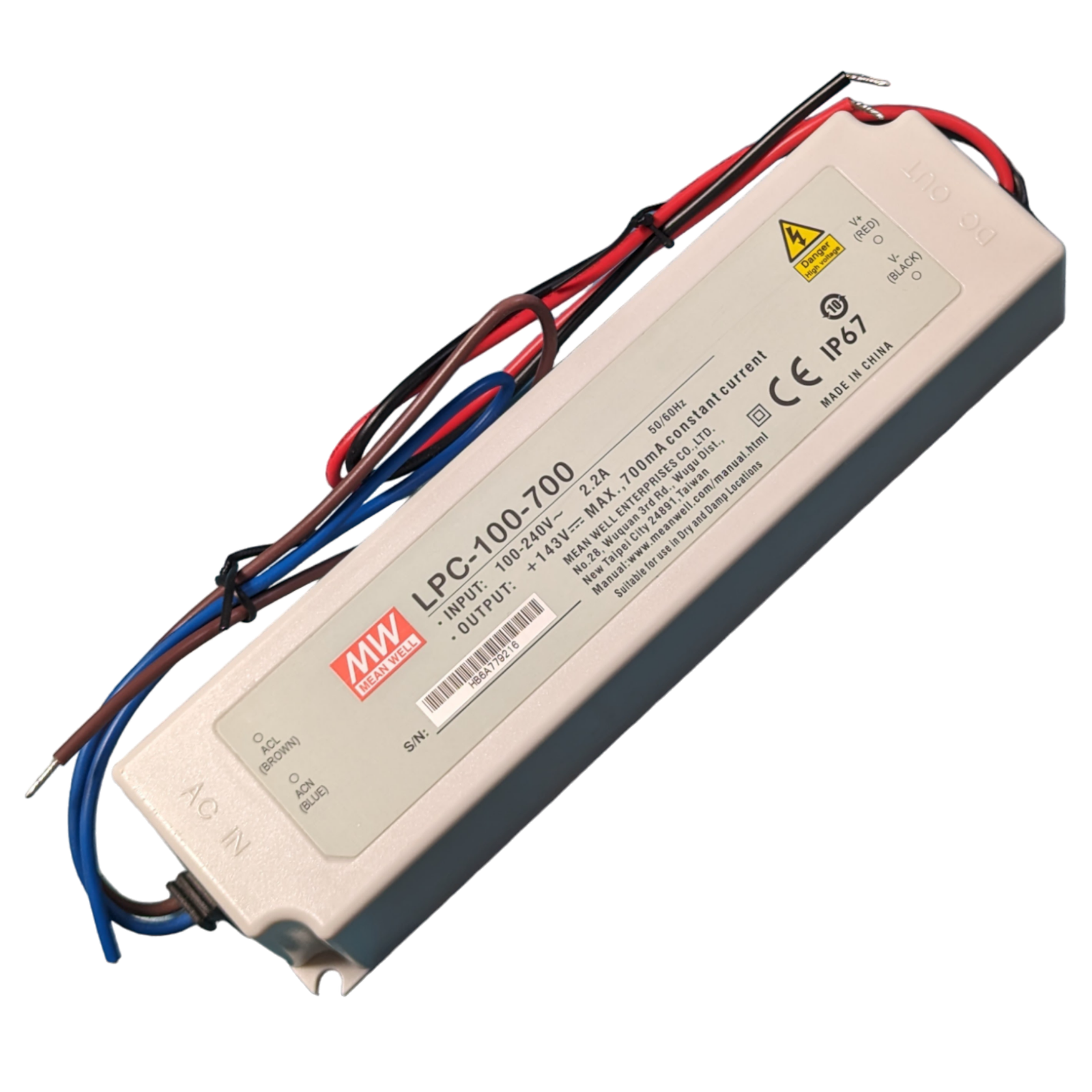

Mean Well LPC-100-700 100W 700mA Constant Current LED Driver
£21.20
100W constant current LED driver from Mean Well with 700mA output. Compact design with built-in protection functions for LED strip, module and luminaire applications.
Description
100W constant current LED driver from Mean Well with 700mA output. Compact design with built-in protection functions for LED strip, module and luminaire applications.
100W Single Output LED Power Supply
- Model: LPC-100-700
- Manufacturer: Mean Well
Features:
Constant current design
- Protections: Short circuit / Over voltage
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- High efficiency up to 90%
- Cooling by free air convection
- Fully encapsulated with IP67 level
- Fully isolated plastic case
- Class II power unit
- 100% full load burn-in test
- Low Cost, High reliability
Specifications:
- Wattage: 100.1W
- Input Voltage: 90-264VAC
- Output Current: 700mA
- DC Output Adjustment: 72-143V
- Working Temperature: -25-+50°C
- Safety Standards: IP67 approved, Design refer to TUV EN60950-1
- EMC Standards: Compliance to EN55022 (CiSPR22) Class B; EN61000-3-2 Class A(<80% load); EN61000-3-3. Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A.
Additional information
| Model | LPC-100-700 |
|---|---|
| Manufacturer | Mean Well |
| Protections | Short circuit / Over voltage |
| Wattage | 100.1W |
| Input Voltage | 90-264VAC |
| Output Current | 700mA |
| DC Output Adjustment | 72-143V |
| Working Temperature | -25-+50°C |
