Collingwood SOLIPDRV185 1000mA LED Driver – 30-42V DC Constant Current With Connector Block
£21.50
1000mA LED driver from Collingwood with a 30-42V DC output, Class II and SELV rated. UKCA and CE marked, and supplied with an input lead and terminal block. For powering LED modules in indoor luminaires. Comes with connector block.
9 in stock
Description

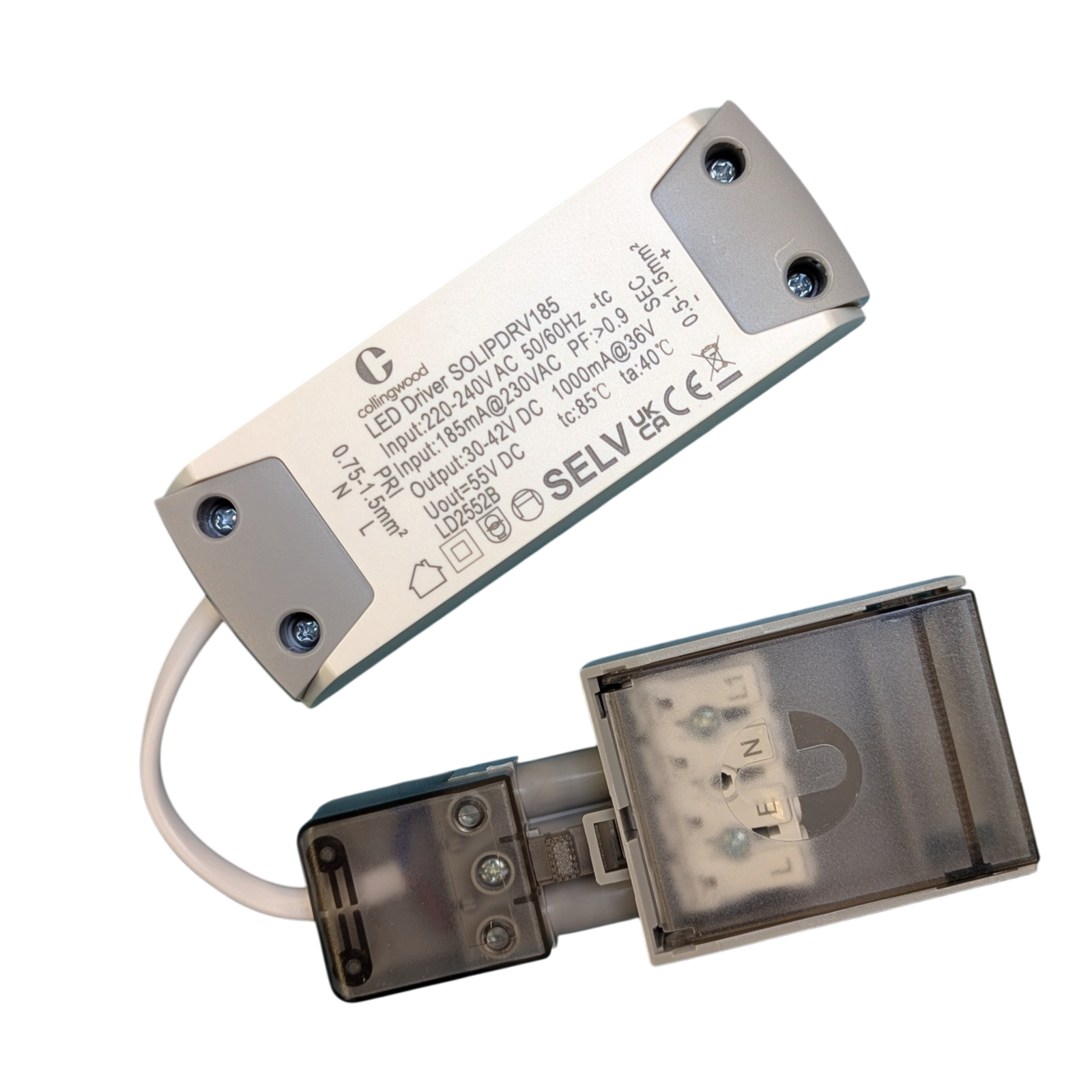

Collingwood SOLIPDRV185 1000mA LED Driver with Connector Block
This 1000mA LED driver from Collingwood delivers a regulated constant current output for LED modules, downlights and panel luminaires. With an output voltage range of 30-42V DC, it’s a dependable choice for new luminaire builds and for replacing a failed driver on a matching 1A LED board.
- 1000mA output: a steady 1A drive current, rated at 36V
- Output range: 30-42V DC, with a maximum output voltage of 55V DC
- Wide mains input: 220-240V AC, 50/60Hz, with a power factor above 0.9
- Efficient: draws just 185mA at 230V AC
- Class II and SELV: double-insulated, with a safety extra low voltage output
- Easy installation: pre-wired input lead with terminal block and cover, plus screw terminals on the driver body
- Compliance: UKCA, CE and WEEE marked
Where to use this 1000mA LED driver
Its compact body makes this 1000mA LED driver a good fit for downlights, ceiling panels and other luminaires where space is limited. It suits electricians, installers and fixture manufacturers who need a reliable 1A driver for 30-42V LED loads.
1000mA LED Driver Specifications
| Brand | Collingwood |
| Model | SOLIPDRV185 |
| Reference | LD2552B |
| Input Voltage | 220-240V AC |
| Input Current | 185mA @ 230V AC |
| Frequency | 50/60 Hz |
| Power Factor | > 0.9 |
| Output Current | 1000mA @ 36V |
| Output Voltage | 30-42V DC |
| Max Output Voltage | 55V DC |
| Max Case Temp (tc) | 85°C |
| Max Ambient Temp (ta) | 40°C |
| Primary Wire | 0.75-1.5mm² |
| Secondary Wire | 0.5-1.5mm² |
| Protection Class | Class II |
| Safety | SELV |
