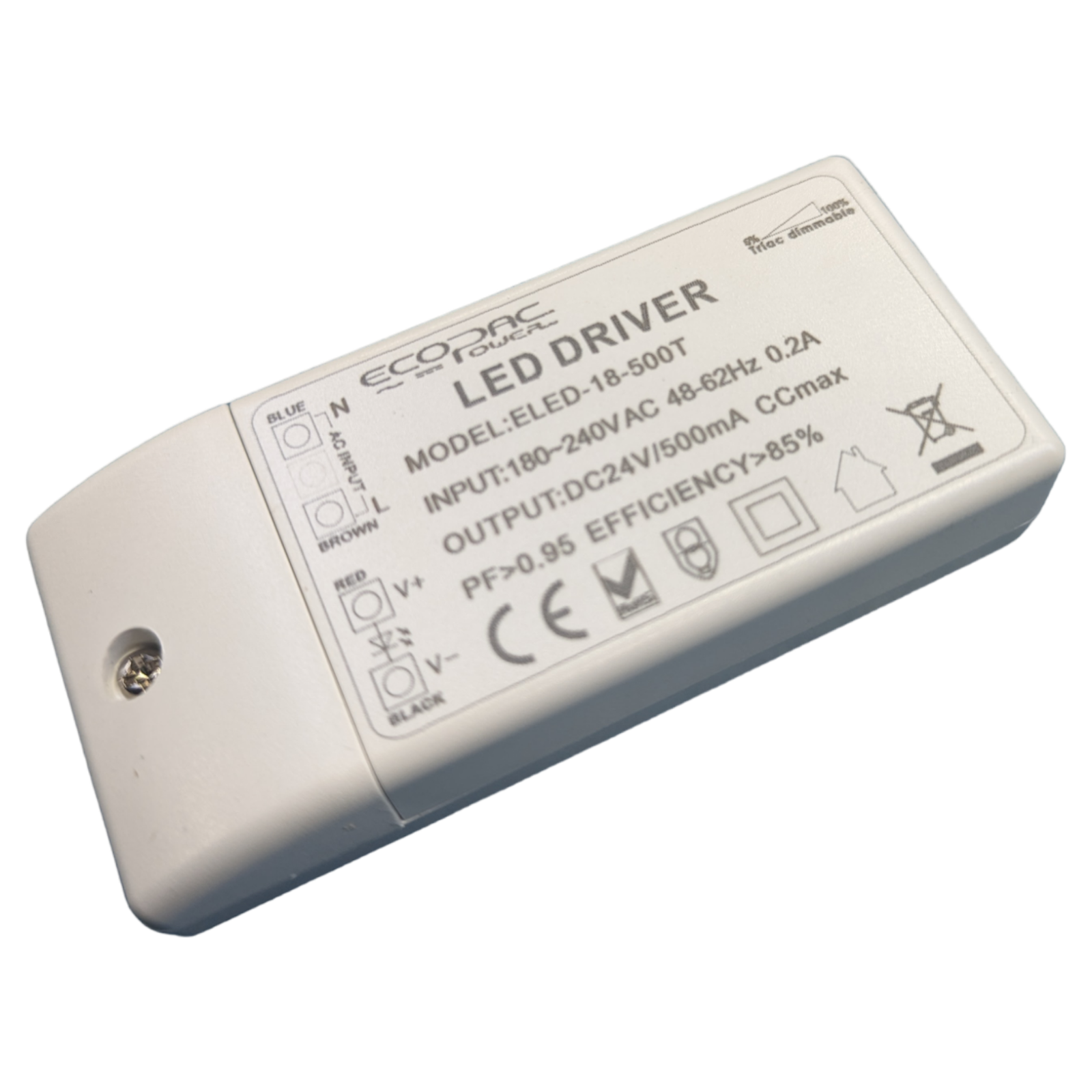

Ecopac ELED-18-500T 18W 500mA TRIAC Dimmable LED Driver
£18.00
18W TRIAC dimmable constant current LED driver from Ecopac. 500mA output, compatible with leading and trailing edge dimmers for LED downlight and spotlight applications.
Description
18W TRIAC dimmable constant current LED driver from Ecopac. 500mA output, compatible with leading and trailing edge dimmers for LED downlight and spotlight applications.
18W Triac Dimmable Driver
- Model: ELED-18-500T
- Manufacturer: Ecopac Power
Features
- Triac dimmable
- Suitable for leading/ trailing edge dimming • Constant current and constant voltage design
- Protections: Short circuit/ Overload/ Over voltage
- Built-in PFC function (PFC>0.95)
- Cooling by free air convection
- Up to 84% efficiency
- Fully isolated, delivering up to 18W of power
Characteristics
- Input Voltage Range: 220-240VAC
- AC Frequency: 50-60Hz
- Output Mode: Constant Current
- Output Current: 500mA
- Output Voltage: 20-36V
- Output Power: 18W Max
- Power Factor: >0.95
- Efficiency: >80%
- Operating Temperature: -30°C-+45°C
- Relative Humidity: 5-95%
- Isolation Voltage: In/ Out 3000VAC
- Vibration: 5-55Hz/ 2g, 30minutes EMI EN55015 Class B
- Safety: EN61347-1, EN61347-2-13
- Electromagnetic Immunity: EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11
- Harmonic Current Emissions: EN61000-3-2, EN61000-3-3
- Dimensions (mm): 91x 40x 19
Additional information
| Model | ELED-18-500T |
|---|---|
| Manufacturer | Ecopac |
| Protections | Short circuit/ Overload/ Over voltage |
| Input Voltage Range | 220-240VAC |
| AC Frequency | 50-60Hz |
| Output Mode | Constant Current |
| Output Current | 500mA |
| Output Voltage | 20-36V |
