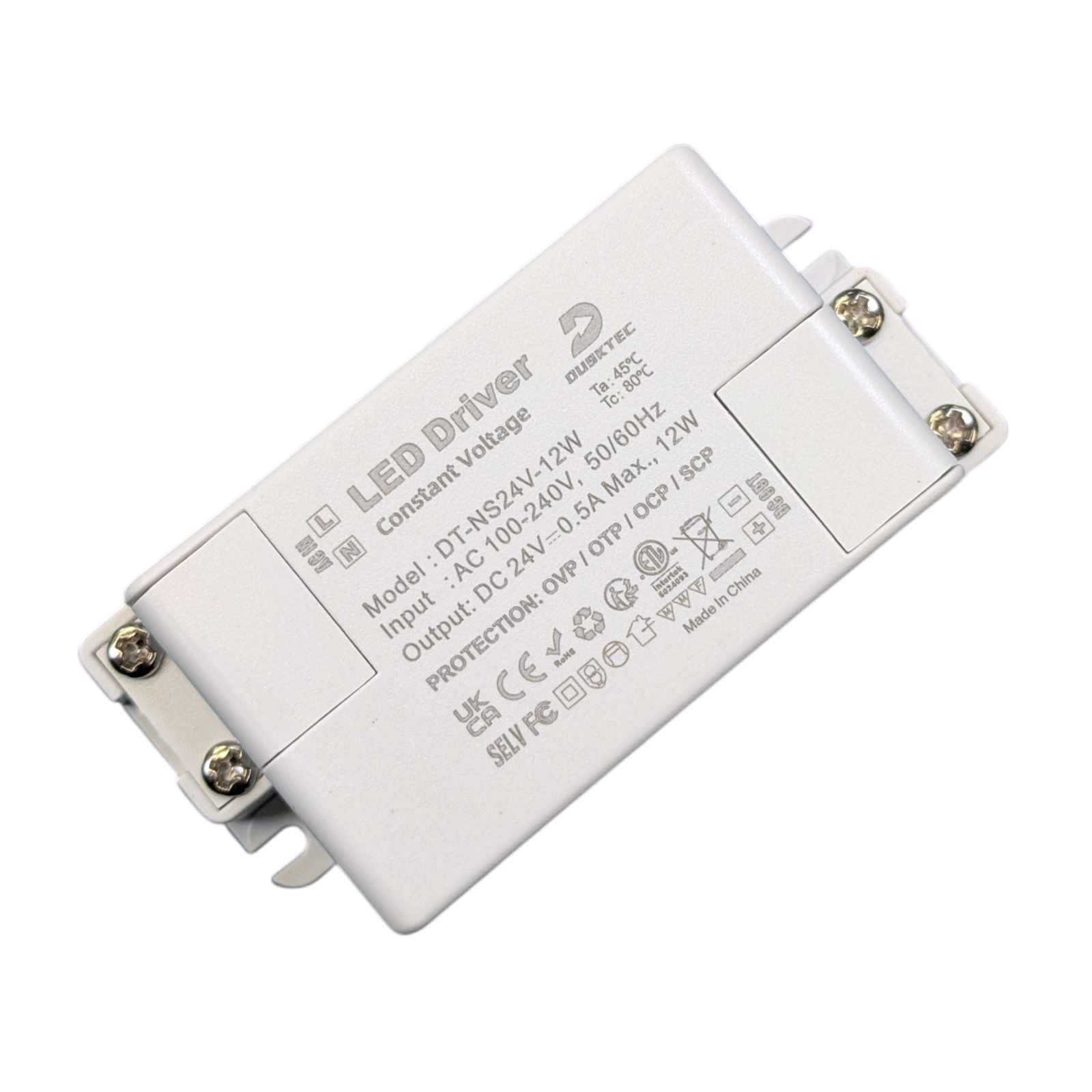

DUSKTEC DT-NS24V-12W 12W LED Driver – 24V 0.5A Constant Voltage
£10.99
12W LED driver from DUSKTEC delivering 24V DC at up to 0.5A constant voltage. Wide 100-240V AC input, with OVP, OTP, OCP and SCP protection. UKCA, CE, FCC and RoHS marked, and SELV rated. For small 24V LED strips and LED loads indoors.
17 in stock
Description
DUSKTEC DT-NS24V-12W 12W LED Driver, 24V Constant Voltage
This 12W LED driver from DUSKTEC provides a stable, regulated 24V DC output at up to 0.5A, making it a neat power source for short 24V LED strip runs, small LED lighting projects and other low voltage LED loads. The wide 100-240V AC input means it works on standard mains supplies in the UK and abroad.
- Constant voltage output: a steady 24V DC, ideal for 24V LED strips and fixtures
- 12W power: up to 0.5A of output current, ideal for small installations
- Wide input range: 100-240V AC, 50/60Hz
- Built-in protection: over voltage (OVP), over temperature (OTP), over current (OCP) and short circuit (SCP) protection
- SELV rated: safe extra low voltage output
- Easy wiring: screw terminals for AC input (L, N) and DC output (+, -)
- Compliance: UKCA, CE, FCC, RoHS and WEEE marked
Where to use this 12W LED driver
The compact body makes this 12W LED driver a good fit for short LED strip runs, cabinet and shelf lighting, small displays and signage where a neat, low-profile power supply is needed. It suits electricians, installers and DIY users who need a dependable 24V supply for small indoor lighting jobs.
12W LED Driver Specifications
| Brand | DUSKTEC |
| Model | DT-NS24V-12W |
| Type | Constant voltage LED driver |
| Input Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Output Voltage | 24V DC |
| Output Current | 0.5A max |
| Output Power | 12W max |
| Max Ambient Temp (Ta) | 45°C |
| Max Case Temp (Tc) | 80°C |
| Protection | OVP / OTP / OCP / SCP |
| Safety | SELV |
| Terminals | Screw terminals |
Additional information
| Weight | 0.058 kg |
|---|---|
| Dimensions | 75 × 38 × 23 cm |
