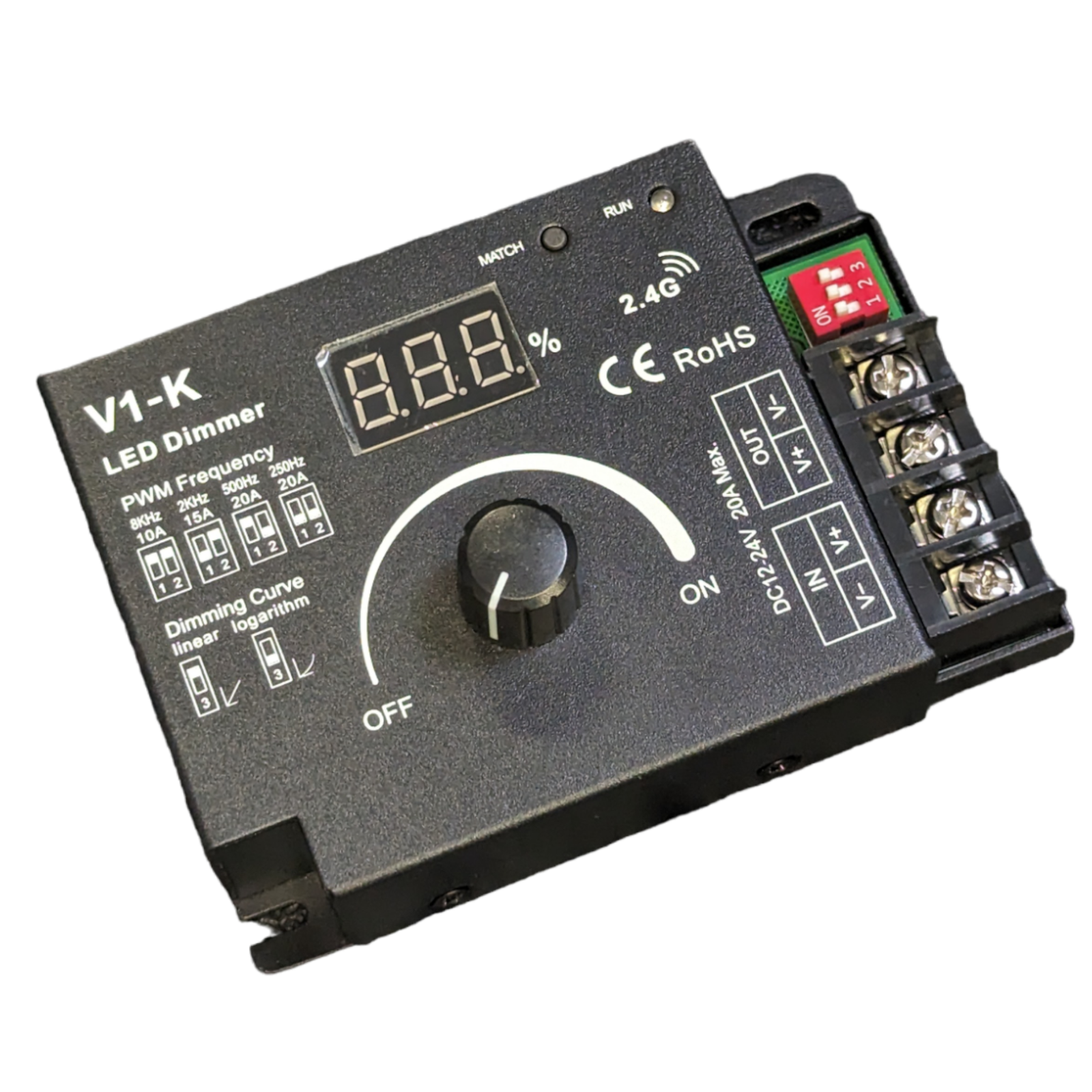

Rotary LED Dimmer V1-K 20A PWM Controller

Description

Rotary LED dimmer with numeric display and 20A max capacity. Four PWM frequency settings with linear or logarithmic dimming modes and multiple protection features.

Rotary dimming / Numeric display / Max 20A / Four PWM frequency / Linear or logarithmic dimming / Multiple protection

Features

● Rotary dimmer with the digital numeric display, visible dimming level.

● Match with Skydance’s 2.4G single-zone

or multiple zones dimming remote control optional.

● 0-100% dimming smoothly without any flash.

● High load current up to 20A.

● Logarithmic or linear dimming curve selectable.

● PWM frequency 250Hz, 500Hz, 2kHz, or 8kHz selectable.

● Over-heat / Over-load / Short circuit protection, recover automatically.

Input and Output

Input voltage: DC12-24V

Input current: 20A

Output voltage: 12-24VDC

Output current: 1CH, 20A Max.

Output power: 240W/480W Max. @ (12V/24V) 250Hz PWM

Output type: Constant voltage

Safety and EMC

EMC standard (EMC): EN301 489,EN 62479

Safety standard(LVD): EN60950

Certification: CE,EMC

Dimming data

PWM Frequency: 250Hz, 500Hz, 2kHz, 8kHz

Dimming level: 100 levels

Dimming range: 0 -100%

Dimming curve: Logarithmic or linear
