BOKE BK-CEL040A-0700 700mA LED Driver – 29.4W Constant Current, 27-42V DC
£11.75
Compact 700mA constant current LED driver from BOKE, delivering up to 29.4W at 27-42V DC. Class II, SELV rated, with CE, ENEC and RoHS compliance. Designed for powering LED modules in indoor lighting.
22 in stock
Description

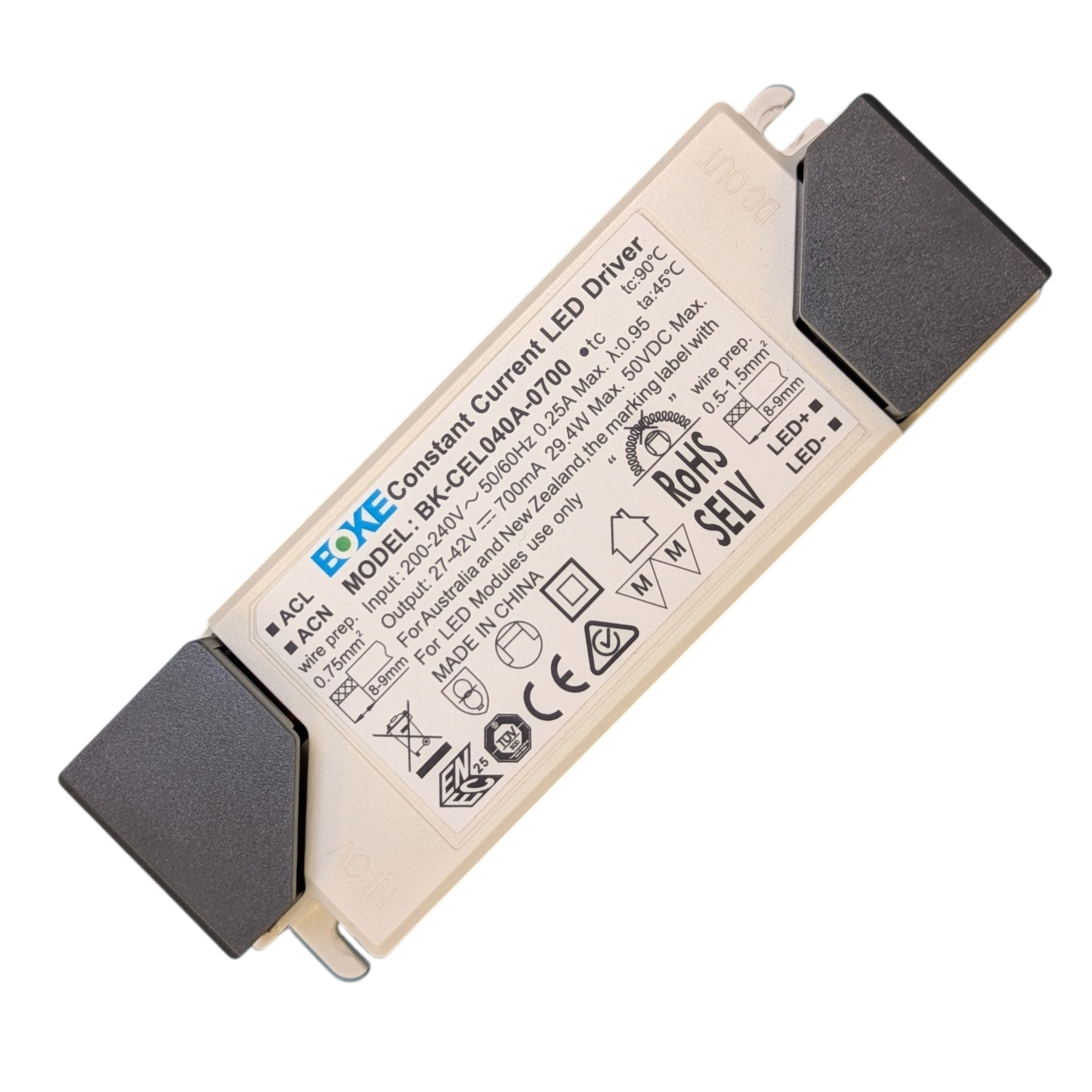

BOKE BK-CEL040A-0700 700mA Constant Current LED Driver
This 700mA LED driver from BOKE delivers a stable, regulated constant current output for LED modules, panels and fixtures. With an output range of 27-42V DC and up to 29.4W of power, it’s a dependable choice for downlights, panel lights, and general indoor lighting builds and replacements.
- Constant current output: a steady 700mA protects your LEDs and keeps brightness consistent
- Wide input range: works on 200-240V AC, 50/60Hz
- High power factor: λ 0.95 for efficient operation
- SELV rated: safety extra low voltage output
- Class II double-insulated: no earth connection required
- Compliance: CE, ENEC, RoHS and RCM marked, with TÜV certification
- Suitable for mounting on normally flammable surfaces (M-M rated)
- Compact slim housing with push-in terminal blocks for quick wiring
Technical Specifications
| Brand | BOKE |
| Model | BK-CEL040A-0700 |
| Type | Constant current LED driver |
| Input Voltage | 200-240V AC |
| Input Current | 0.25A max |
| Frequency | 50/60 Hz |
| Power Factor | λ 0.95 |
| Output Current | 700mA (constant current) |
| Output Voltage | 27-42V DC (50V DC max) |
| Output Power | 29.4W max |
| Max Case Temp (tc) | 90°C |
| Max Ambient Temp (ta) | 45°C |
| Input Wire | 0.75mm², strip 8-9mm |
| Output Wire | 0.5-1.5mm², strip 8-9mm |
| Protection Class | Class II |
| Safety | SELV |
