Lightech LED26CC500EMD 26W 500mA DALI Dimmable LED Driver
£73.50
26W DALI dimmable constant current LED driver from Lightech. Class II ENEC and SELV certified with 500mA output for professional architectural LED luminaires.
Description
26W DALI dimmable constant current LED driver from Lightech. Class II ENEC and SELV certified with 500mA output for professional architectural LED luminaires.

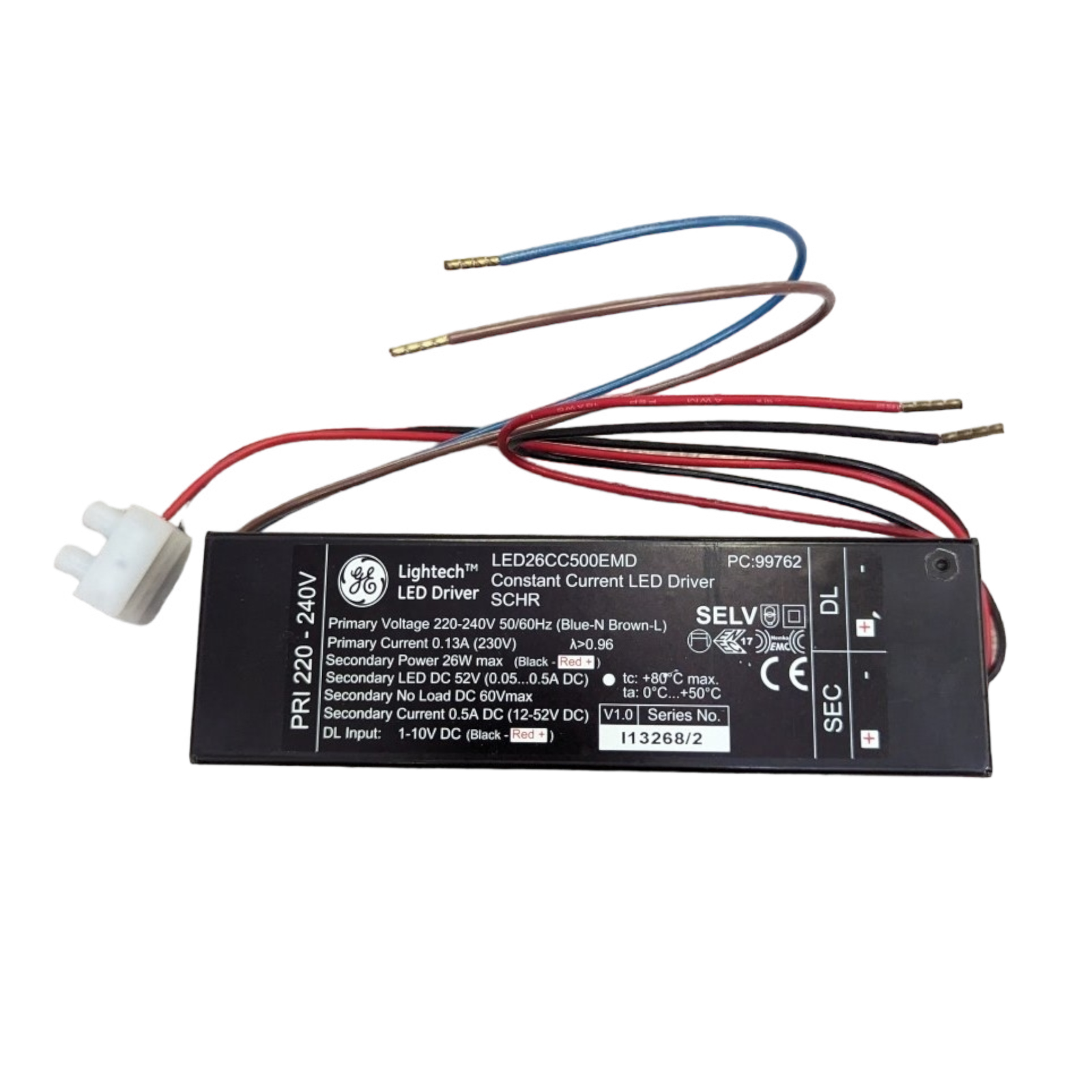

Lightech 99762 LED26CC500EMD LED Driver
Product data
| Product Code | 99762 |
|---|---|
| Class II | Yes |
| ENEC | Yes |
| SELV | Yes |
| Product colour | Black |
| Dimmable | 0-10V (10%) |
| Form factor | Aluminum SL |
| Height [mm] | 32 |
| Length [mm] | 162 |
| Width [mm] | 45 |
| IP | 67 |
| Weight [g] | 354 |
| IP67 | Yes |
Performance data
| Colour (product colour) | Black |
|---|---|
| Ambient temperature min. [°C] | -25 °C |
| Ambient temperature max. [°C] | 50 °C |
| Case temperature [°C] | 80 °C |
| Power factor | 0.96 |
| Efficiency [%] | 88 |
Electrical data
| Input frequency | 50/60Hz |
|---|---|
| Output voltage range | 52V |
| Drive Current [mA] | 500mA |
| Input voltage range | 220-240V |
| Nominal power [W] | 26 |
| Nominal lamp voltage [V] | 230 |
Additional information
| Manufacturer | Lightech |
|---|
