Eaglerise LS-40-900 LI4 40W LED Driver – 900mA Constant Current
£7.50
A compact, high-efficiency constant current LED driver from Eaglerise, rated at 40W with a fixed 900mA output. Ideal for powering LED modules and fixtures requiring a 24-42V DC forward voltage range. CE and ENEC certified, SELV safety rated for reliable, safe operation.
44 in stock
Description

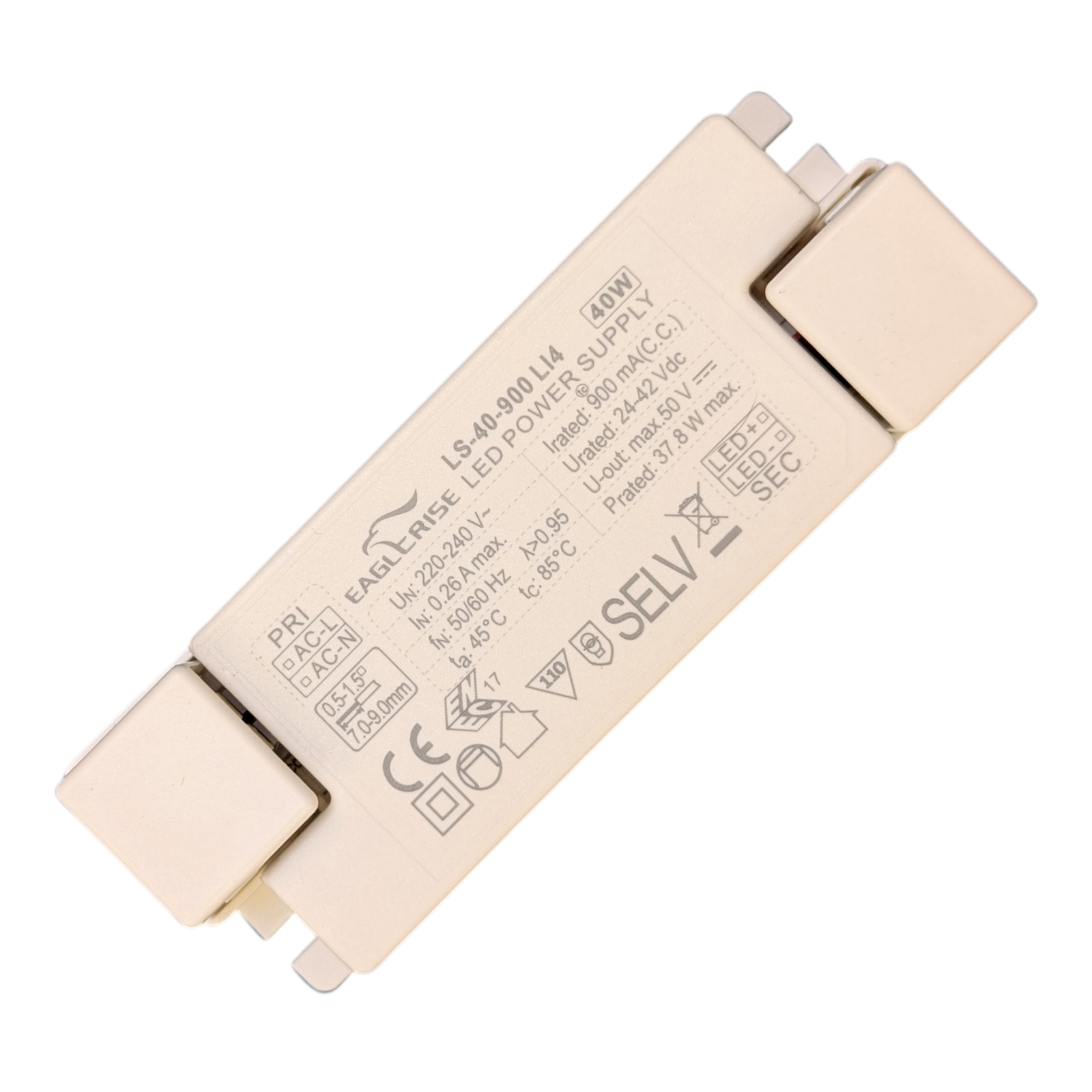

Eaglerise LS-40-900 LI4 LED Power Supply
Keep your LED installations running smoothly with this Eaglerise constant current LED driver. Built for reliability and safety compliance, it’s a great fit for architectural lighting, LED strip arrays, and fixture manufacturing applications requiring a stable 900mA output.
Key Features:
- Constant current (C.C.) output — delivers a steady 900mA regardless of load voltage fluctuations
- High power factor (λ > 0.95) for improved energy efficiency
- SELV (Safety Extra Low Voltage) rated for enhanced safety
- Compact, enclosed plastic housing with quick-connect terminals
- CE and ENEC (EN 17) certified
Technical Specifications:
| Model | LS-40-900 LI4 |
| Rated Power | 40W (37.8W max actual) |
| Input Voltage | 220-240V~ |
| Input Current | 0.26A max |
| Frequency | 50/60 Hz |
| Power Factor | λ > 0.95 |
| Output Current | 900mA (Constant Current) |
| Output Voltage | 24-42V DC (max 50V) |
| Ambient Temp (ta) | 45°C max |
| Case Temp (tc) | 85°C max |
| Cable Entry | 7.0-9.0mm |
| Terminal Capacity | 0.5-1.5mm² |
| Safety Rating | SELV |
| Certifications | CE, ENEC |
