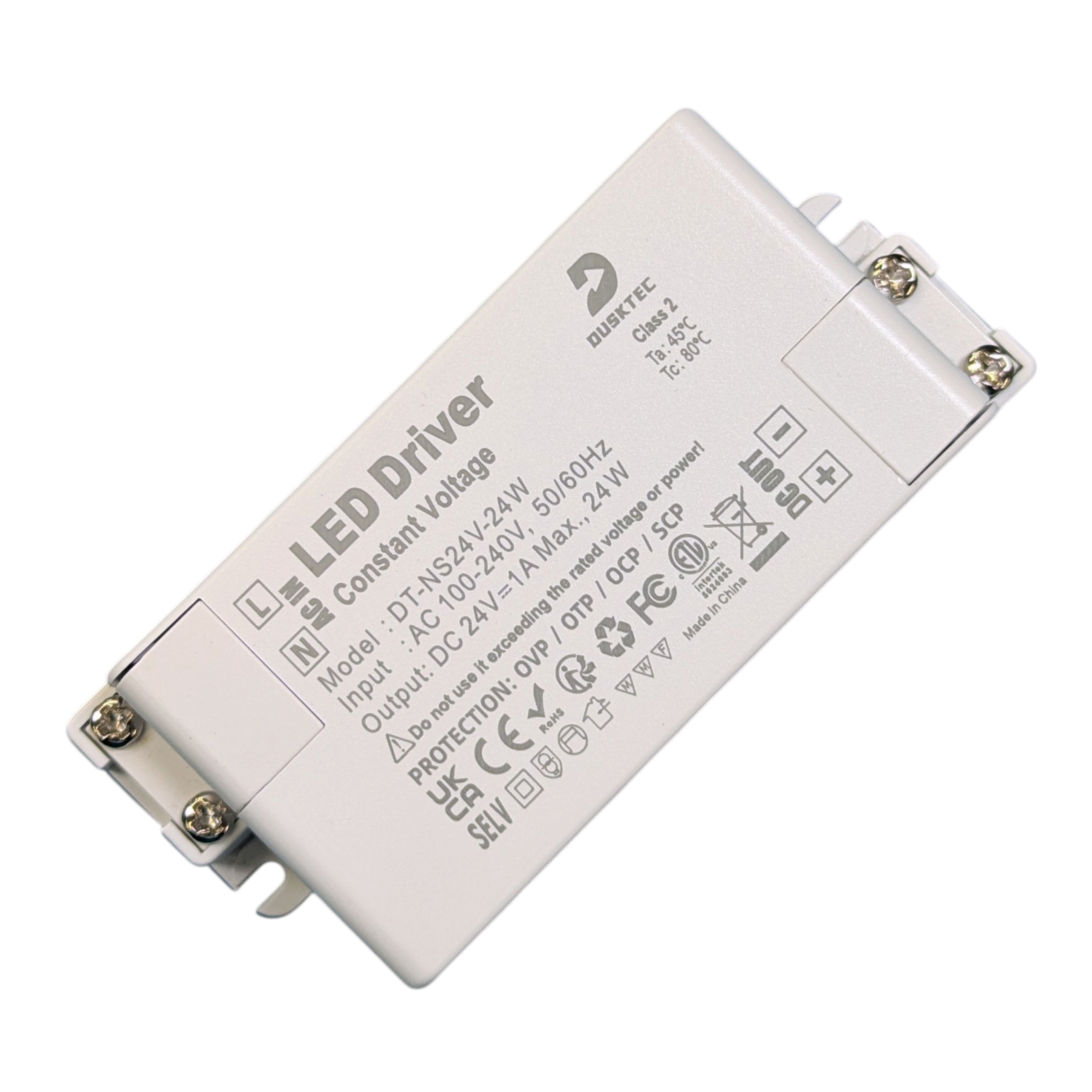

DUSKTEC DT-NS24V-24W 24V LED Driver – 24W 1A Constant Voltage
£12.99
24V LED driver from DUSKTEC delivering 24W at 1A constant voltage. Wide 100-240V AC input, with OVP, OTP, OCP and SCP protection. UKCA, CE, FCC and RoHS marked, and SELV rated. For LED strips and 24V LED loads indoors.
11 in stock
Description
DUSKTEC DT-NS24V-24W 24V LED Driver, Constant Voltage
This 24V LED driver from DUSKTEC provides a stable, regulated 24V DC output at up to 1A (24W), making it a reliable power source for 24V LED strips, LED lighting kits and other low voltage LED loads. The wide 100-240V AC input means it works on standard mains supplies in the UK and abroad.
- Constant voltage output: a steady 24V DC, ideal for 24V LED strips and fixtures
- 24W power: up to 1A of output current
- Wide input range: 100-240V AC, 50/60Hz
- Built-in protection: over voltage (OVP), over temperature (OTP), over current (OCP) and short circuit (SCP) protection
- Class 2 and SELV: safe extra low voltage output
- Easy wiring: screw terminals for AC input (L, N) and DC output (+, -)
- Compliance: UKCA, CE, FCC, RoHS and WEEE marked
Where to use this 24V LED driver
The compact body makes this 24V LED driver a good fit for LED strip installations, under-cabinet lighting, signage and display lighting where a neat, low-profile power supply is needed. It suits electricians, installers and DIY users who need a dependable 24V supply for indoor lighting.
24V LED Driver Specifications
| Brand | DUSKTEC |
| Model | DT-NS24V-24W |
| Type | Constant voltage LED driver |
| Input Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Output Voltage | 24V DC |
| Output Current | 1A max |
| Output Power | 24W max |
| Max Ambient Temp (Ta) | 45°C |
| Max Case Temp (Tc) | 80°C |
| Protection | OVP / OTP / OCP / SCP |
| Protection Class | Class 2 |
| Safety | SELV |
| Terminals | Screw terminals |
Additional information
| Weight | 58 kg |
|---|---|
| Dimensions | 75 × 23 × 38 cm |
